Copper-based alloys for bearings, bushings, wear rings, valve components and electrical work: nickel aluminium bronze C63000 and C95800, beryllium copper C17200 and tellurium copper C14500. Cut to size, no MOQ.
Copper-based alloys combine corrosion resistance, wear resistance and conductivity in ways steel cannot. E STEEL SDN BHD supplies nickel aluminium bronze for seawater and wear service, beryllium copper for springs and connectors, and tellurium copper for machined electrical parts, cut to size with no minimum order quantity.
Typical uses include bearings, bushings, wear rings, valve components and electrodes.

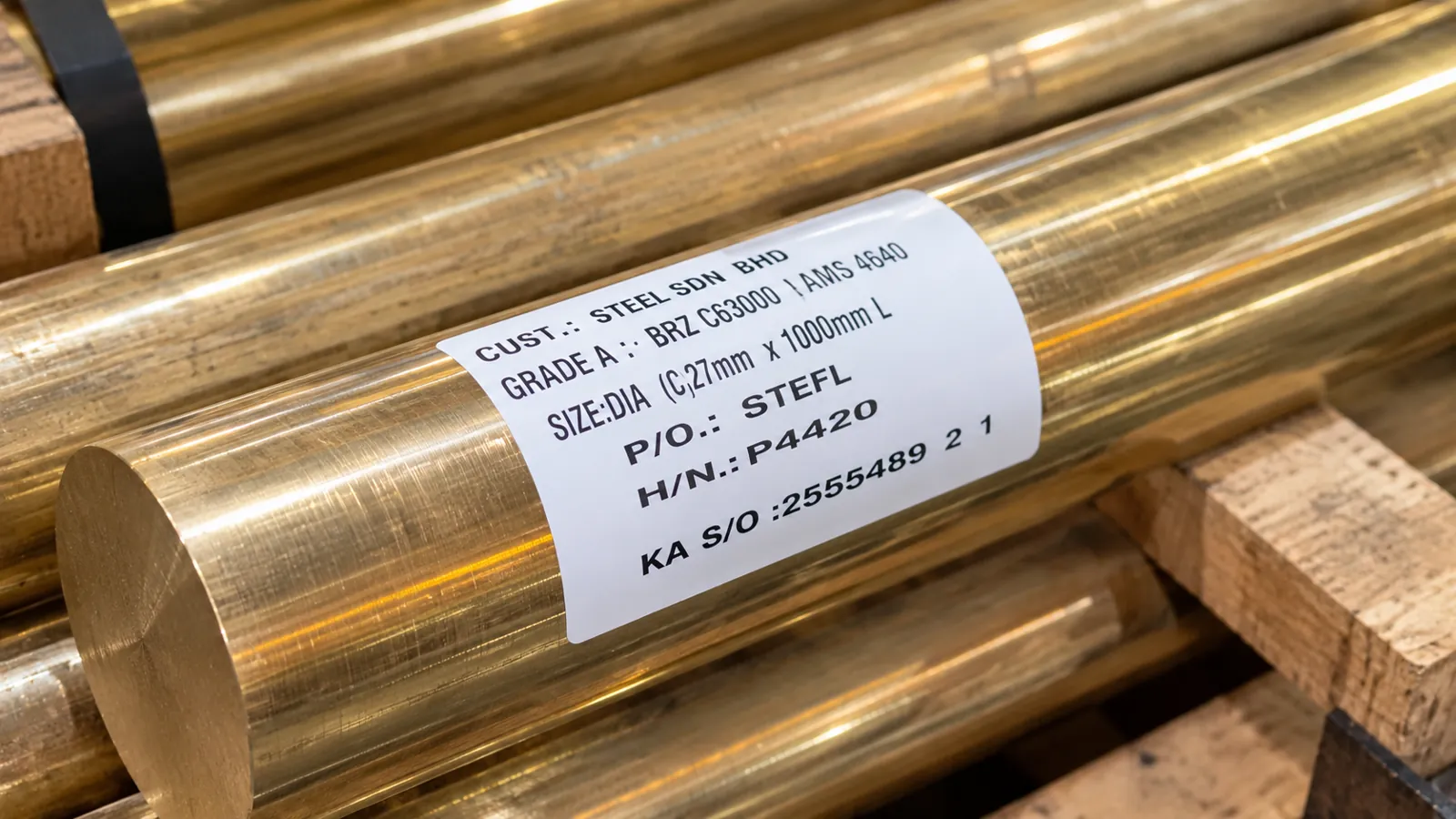

Nickel-Aluminium-Bronze, C63000, AMS4640
UNS C63000 is a nickel-aluminium-bronze alloy of copper, which has excellent corrosion resistance and hot formability features. The following datasheet will provide more details about copper UNS C63000.
| Element | Content (%) |
|---|---|
| Copper, Cu | 82 |
| Aluminium, Al | 10 |
| Nickel, Ni | 5 |
| Iron, Fe | 3 |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 7.58 g/cm³ | 0.274 lb/in³ |
| Melting point | 1035°C | 1895°F |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 760 MPa | 110000 psi |
| Yield strength | 470 MPa | 68200 psi |
| Elongation at break (in 50 mm, 10% reduction in area) | 10% | 10% |
| Elastic modulus | 117 GPa | 17000 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Reduction of area (at 316°C/601°F, cold finished) | 9% | 9% |
| Shear modulus | 44.0 GPa | 6380 ksi |
| Fatigue strength (at number of cycles 1.00e+8, reverse bending) | 255 MPa | 37000 psi |
| Hardness, Rockwell B | 94 | 94 |
| Machinability (UNS C63000 (free-cutting brass) = 100) | 30 | 30 |
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (at 20-300°C/68-572°F) | 16.2 µm/m°C | 9 µin/in°F |
| Thermal conductivity (at 20°C/68°F) | 37.7 W/mK | 262 BTU in/hr.ft².°F |
Brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding, and butt welding are considered as suitable welding processes, whereas processes such as Soldering and oxyacetylene welding are not recommended for UNS C63000 alloy.
Copper UNS C63000 is used for valve and pump components in industrial process streams. It is also used in marine equipment, high strength fasteners and pole line hardware.

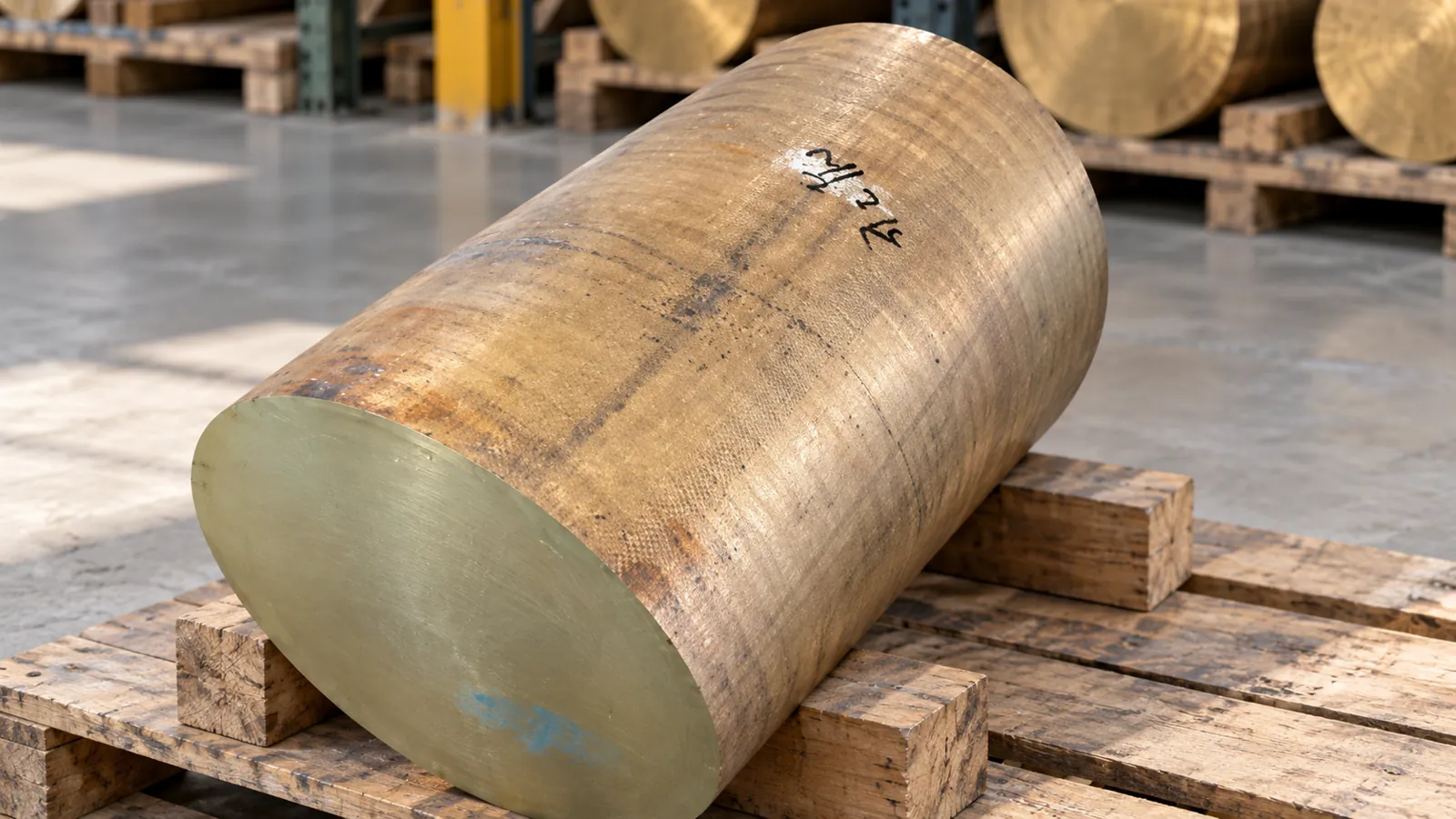

COPPER ALLOY C95800, UNS C95800, ASTM B148, C9580
COPPER ALLOY C95800, UNS C95800, ASTM B148, C9580
C95800 is a nickel aluminium bronze copper casting alloy offers superior salt water corrosion resistance. It also is resistant to cavitation and erosion.
| Element | Content (%) |
|---|---|
| Cu, Copper | 79.0 |
| Al, Aluminium | 8.50-9.50 |
| Ni, Nickel | 3.50-4.50 |
| Mn, Manganese | 0.80-1.50 |
| Fe, Iron | 0.030 |
| CHARACTERISTICS |
|---|
| • Excellent strength and ductility even at low temperatures |
| • Good casting qualities |
| • Excellent shock & wear resistance |
| • Good machinability |
| • Good thermal and electrical conductivity |
| • Suitable for welding |
| • Exceptional corrosion resistance |
| MECHANICAL PROPERTIES | |
|---|---|
| Property | Value |
| Elongation A50 mm | 15 % |
| Hardness Rockwell B | 88 HRB |
| Tensile Strength | 586 MPa |
Aluminium bronze alloys are used in marine hardware, shafts, and pump and valve components for handling seawater, sour mine waters, non-oxidizing acids, and industrial process fluids. Aluminium bronze castings have exceptional corrosion resistance, high strength, toughness, and wear resistance.

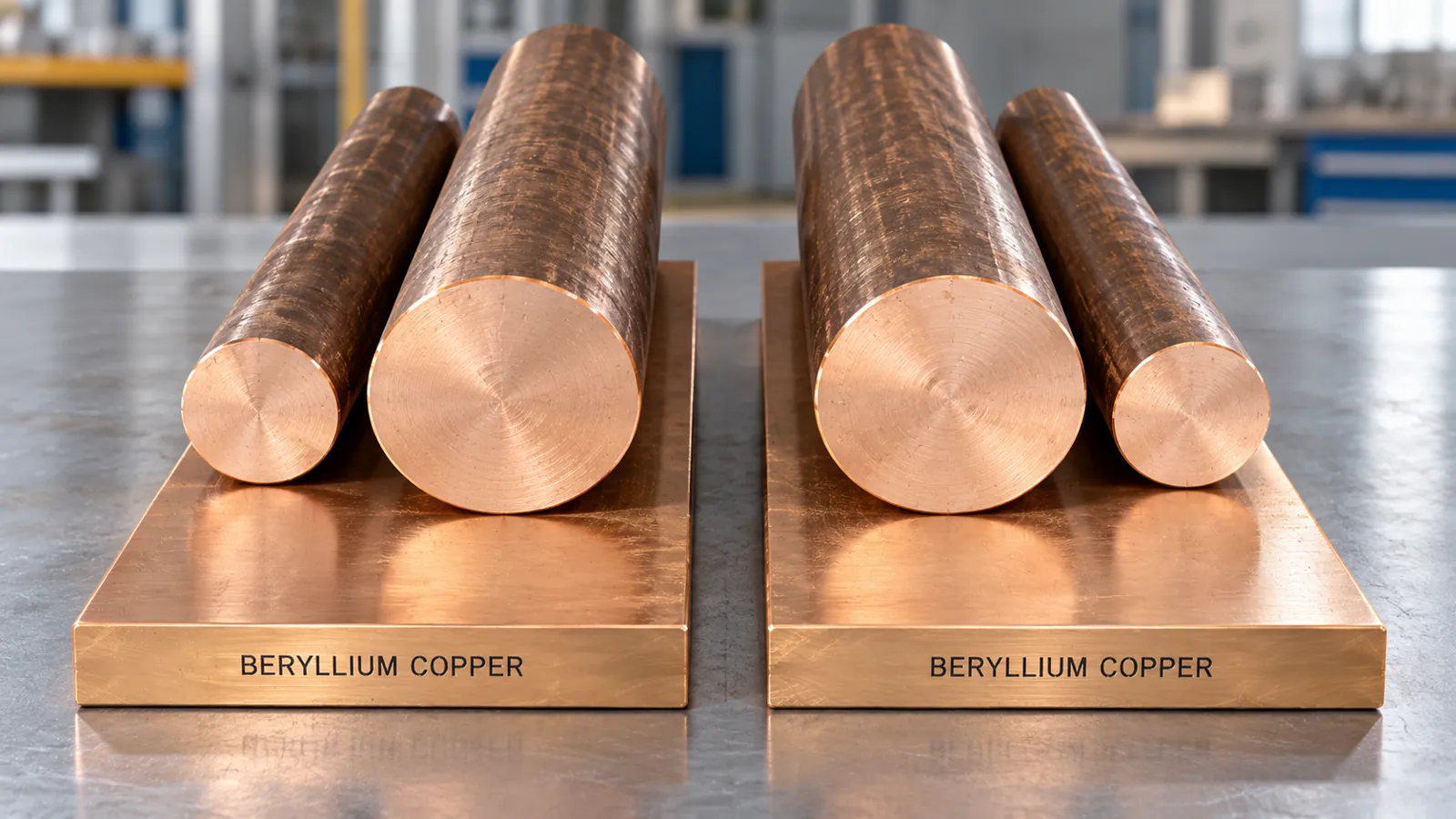

Beryllium copper | UNS C17200 | 2.1247 | Alloy 25 | Din 17672
UNS C17200 beryllium copper alloys are ductile and produced in mill hardened and heat treatable tempers. These alloys are used for all applications, which require high strength, stiffness and good conductivity. The tensile strength of C17200 copper is over 1380 MPa (200 ksi).
| Chemical Composition | |||||
|---|---|---|---|---|---|
| Al | Be | Co | Cu | Si | |
| Min/Max | 0.2 | 1.8 – 2.0 | 0.20 min | Rem | 0.2 |
| Nominals | – | 1.9 | – | 98.1 | – |
| Physical Properties | |
|---|---|
| Coefficient of Thermal Expansion | 17.8 × 10⁻⁶ per °C (20-300 C) |
| Density | 8.25 gm/cm3 @ 20 C |
| Electrical Conductivity | 0.129 MegaSiemens/cm @ 20 C |
| Electrical Resistivity | 7.68 microhm-cm @ 20 C |
| Melting Point Liquid US | 982 C |
| Melting Point Solid US | 866 C |
| Modulus of Elasticity in Tension | 128000 MPa |
| Modulus of Rigidity | 50330 MPa |
| Specific Gravity | 8.26 |
| Specific Heat Capacity | 419.0 J/kg . °K at 293 K |
| Thermal Conductivity | 107.3 W/m . °K at 20 C |
The following are the major applications of the UNS C17200 copper:

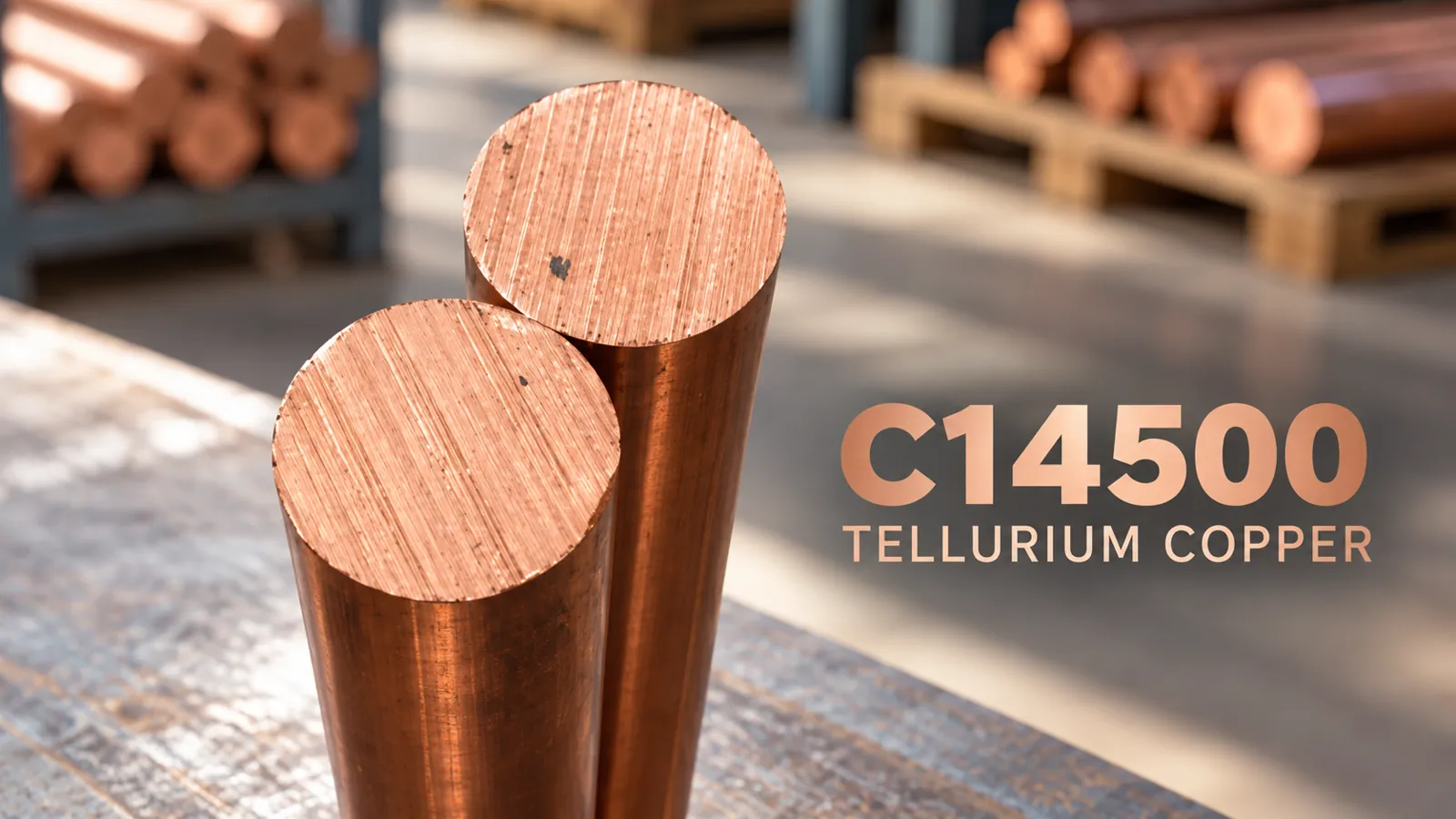

Copper Tellurium | Alloy 145 | UNS C14500
Tellurium copper—also referred to as Alloy 145, Alloy C14500, 145 half-hard tellurium, and TeCu—is a copper-based alloy that contains varying amounts of tellurium and phosphorus. The tellurium content typically ranges between 0.4–0.7%, while the phosphorus content ranges between 0.004–0.12%.
Tellurium copper demonstrates good electrical and thermal conductivity, good formability and high machinability. These properties make it suitable for a wide range of industrial applications.
| Tellurium Copper Chemical Composition (%max., unless shown as range or min.) | |||
|---|---|---|---|
| Cu(1)(2) | P | Te | |
| Min./Max. | 99.90 min | .004-.012 | .40-.7 |
| Nominal | 99.50 | .008 | .55 |
Mechanical, chemical, electrical, and characteristic of tellurium copper include:
Resistance to atmospheric corrosion
High thermal (205 BTU/ft2/ft/hr/°F) and electrical conductivity (90% as per IACS)
Resistance to hydrogen embrittlement (i.e., fracturing and weakening caused by the introduction and diffusion of hydrogen)
Tensile strength of 47,900 psi (approximately 38 to 48 ksi)
Yield strength of 44,200 psi (approximately 30 to 40 ksi)
Elongation capabilities ranging between 4–12%
Hardness between 65–130 HV
Structural integrity up to 350° Celsius
Good formability (for cold and hot forming processes)
Machinability rating of 85–90% (where free cutting brass is 100)
Suitability for soldering and brazing
Unsuitability for specific welding processes, such as coated metal arc welding, oxy-acetylene welding, resistance welding, seam welding, or spot welding
Material is according to EN 12164 R250 (Half-hard) condition.
Due to its unique properties—such as its corrosion resistance, machinability and electrical, and thermal conductivity—tellurium copper finds application in a variety of industries, including:
Bandsaw technology ensures minimal kerf loss and clean, burr-free edges.
Cut to the size your job needs. No minimum order quantity.
Mill test reports (MTRs) for traceability.
Fast air and sea shipping with real-time tracking.
No MOQ, shipped globally from Malaysia. Send us the size and we will cut it.
